เครื่องมือ · LIQUIDITY — สภาพคล่องและการกรองระบอบ
Liq Heat Map + Vol Prof v20
ตอบคำถามว่า “สภาพคล่องกองอยู่ตรงไหน และสภาพตลาดตอนนี้มีโครงสร้างพอให้อ่านได้หรือไม่” เป็นเครื่องมือที่หนักที่สุดในชุด และมีโมดูลย่อยมากที่สุด
มันวัดอะไร

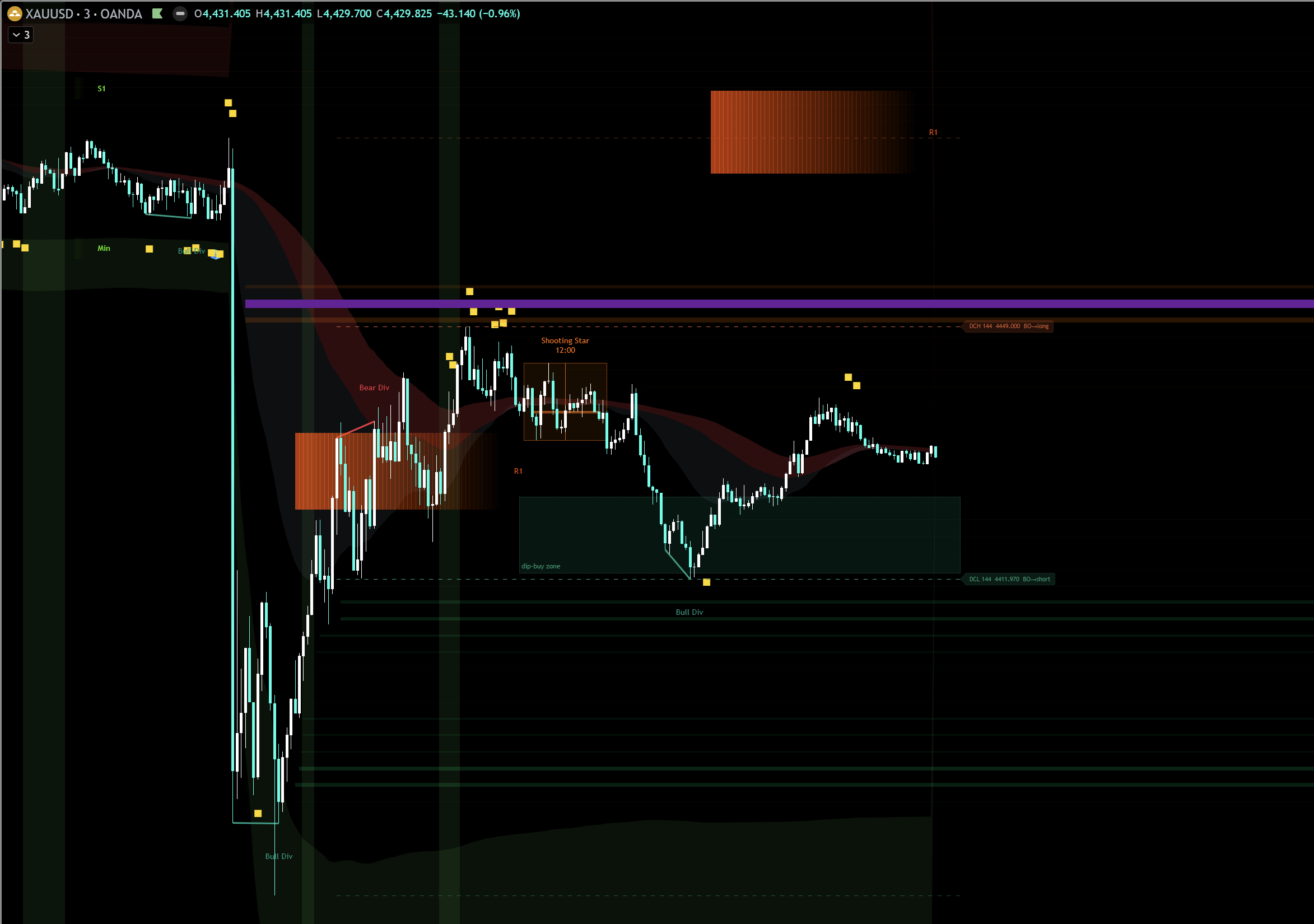

Liquidity Heatmap ประมาณบริเวณที่คำสั่งกองอยู่จากโครงสร้างราคาและปริมาณ พร้อม Volume Profile ของตัวเอง (บนกรอบ M3 เปิดเฉพาะเส้น VAH/VAL ปิดฮิสโทแกรมเพื่อลดความรก)
ตัวกรองเชิงสถิติหลายชั้น: Kalman filter สองความเร็วสำหรับกรองสัญญาณรบกวน, Hilbert dominant cycle สำหรับปรับความยาวเส้นตามรอบตลาด, RQ-Kernel regression, Shannon entropy ที่บอกว่าตลาดมีโครงสร้างหรือเป็นสุ่ม และ VPIN ที่ประมาณความเป็นพิษของ order flow
Monte Carlo engine จำลองเส้นทางราคาไปข้างหน้าเพื่อวางกรอบความน่าจะเป็น และโมดูล Confluence / Triple-MTF ที่รวมสัญญาณข้ามกรอบเวลา
วิธีอ่าน
ใช้ heatmap และ VP เพื่อหา ตำแหน่ง ที่มีแนวโน้มเกิดปฏิกิริยา ไม่ใช่เพื่อหาจังหวะเข้า
Entropy คือตัวกรองที่มีค่าที่สุดในโมดูลนี้ — เมื่อค่าบอกว่าตลาดเป็นสุ่ม แปลว่าโมเดลที่อาศัยโครงสร้างจะทำงานแย่ลง และการไม่เทรดคือคำตอบที่ถูก
Triple-MTF ถูกตั้งให้แต่ละกรอบเวลามองสูงกว่าตัวเองเสมอ (M3 มอง 3 ชั่วโมง / H1 มอง 1 ชั่วโมงและ 4 ชั่วโมง) เพื่อไม่ให้สัญญาณสวนกับโครงสร้างใหญ่
ข้อจำกัดและกรณีที่ผิด
Heatmap ไม่ใช่ order book จริง — มันคือการอนุมานจากราคาและปริมาณย้อนหลัง สภาพคล่องจริงมองไม่เห็นบนแพลตฟอร์มนี้
Monte Carlo ให้ช่วงความน่าจะเป็นภายใต้สมมติฐานที่ตัวมันเองตั้งไว้ (GBM + ตัวกรองเทรนด์) ถ้าตลาดเปลี่ยนระบอบ สมมติฐานก็ผิดทันที เส้นที่เห็นไม่ใช่คำทำนาย
โมดูลจำนวนมากทำให้เกิดความเสี่ยงจากการเลือกดูเฉพาะสิ่งที่อยากเห็น — เมื่อมีตัวชี้หลายสิบตัว จะมีบางตัวเห็นด้วยกับสิ่งที่เราคิดอยู่เสมอ ควรกำหนดล่วงหน้าว่าจะดูอะไร
โมดูล HV-Pivot ถูกปิด อยู่ทั้งสองกรอบเวลา แต่ตัวกรอง CVD ของมันยังเปิดใช้กับโมดูล Confluence และ Triple-MTF อยู่ — เป็นค่าที่ตั้งใจ ไม่ใช่ความผิดพลาด
ค่าที่ตั้งไว้จริง
ตารางนี้ถูกสร้างจากค่าที่ดึงออกมาจากชาร์ตที่ใช้งานอยู่จริง ไม่ได้พิมพ์ด้วยมือ จึงตรงกับสิ่งที่ทำงานอยู่ ณ เวลาที่สร้างหน้านี้เสมอ
ค่าที่ตั้งต่างกันระหว่าง M3 กับ H1 4 จุด
| พารามิเตอร์ | M3 | H1 |
|---|---|---|
| ➡️ Profile X-Axis Offset | 150 | 30 |
| Show RSI Divergences | เปิด | ปิด |
| HTF 1 (H1) | 180 | 60 |
| Enable VWAP Stdev Bands | เปิด | ปิด |
ดูค่าทั้งหมด 217 รายการ
| พารามิเตอร์ | M3 | H1 |
|---|---|---|
| Show Iceberg / Rejection Signals | เปิด | เปิด |
| Show Volume Profile | ปิด | ปิด |
| VP Lookback Bars | 500 | 500 |
| VP Row Count | 100 | 100 |
| Value Area % | 90 | 90 |
| Show VP Boxes (Volume Histogram) | ปิด | ปิด |
| Show POC Line | ปิด | ปิด |
| POC Color | rgba(255,23,68,1) | rgba(255,23,68,1) |
| POC Style | Dotted | Dotted |
| POC Width | 2 | 2 |
| Show POC Label | เปิด | เปิด |
| Show VAH Line | เปิด | เปิด |
| VAH Color | rgba(0,188,212,1) | rgba(0,188,212,1) |
| VAH Style | Dotted | Dotted |
| VAH Width | 2 | 2 |
| Show VAH Label | เปิด | เปิด |
| Show VAL Line | เปิด | เปิด |
| VAL Color | rgba(0,188,212,1) | rgba(0,188,212,1) |
| VAL Style | Dotted | Dotted |
| VAL Width | 2 | 2 |
| Show VAL Label | เปิด | เปิด |
| Calculated Bars | 377 | 377 |
| ➡️ Profile X-Axis Offset | 150 | 30 |
| Show Profile | เปิด | เปิด |
| Show Heatmap Boxes | เปิด | เปิด |
| Show Heatmap Lines | เปิด | เปิด |
| Resolution (Bins) | 85 | 85 |
| Sell Liquidity Color | rgba(255,109,0,1) | rgba(255,109,0,1) |
| Buy Liquidity Color | rgba(0,230,118,1) | rgba(0,230,118,1) |
| Sell Line Transparency (0=opaque) | 19 | 19 |
| Buy Line Transparency (0=opaque) | 19 | 19 |
| Show POC | เปิด | เปิด |
| Max Point (POC) Color | rgba(106,30,154,1) | rgba(106,30,154,1) |
| Show Fix Window Backgrounds | เปิด | เปิด |
| LBMA AM Fix (10:00 – 10:30 UTC) | เปิด | เปิด |
| LBMA PM Fix (15:00 – 15:15 UTC) | เปิด | เปิด |
| CME NY Close (13:20 – 13:30 UTC) | เปิด | เปิด |
| UTC Offset (hours) | 0 | 0 |
| LBMA AM Color | rgba(76,175,80,0.12) | rgba(76,175,80,0.12) |
| LBMA PM Color | rgba(76,175,80,0.12) | rgba(76,175,80,0.12) |
| CME NY Color | rgba(76,175,80,0.12) | rgba(76,175,80,0.12) |
| High Timeframe | 60 | 60 |
| Show Engulfing Patterns | เปิด | เปิด |
| Show Pin Bars | เปิด | เปิด |
| Bullish Pattern Color | #00E676 | #00E676 |
| Bearish Pattern Color | #FF6D00 | #FF6D00 |
| Show RSI Divergences | เปิด | ปิด |
| RSI Length | 14 | 14 |
| Pivot Right Lookback | 5 | 5 |
| Pivot Left Lookback | 5 | 5 |
| Bullish Div Color | #089981 | #089981 |
| Bearish Div Color | #f23645 | #f23645 |
| Show HTF PO3 | ปิด | ปิด |
| Candles to Show | 3 | 3 |
| Right Offset (Bars) | 50 | 50 |
| Show PO3 Price Labels | เปิด | เปิด |
| Show PO3 Running Delta | เปิด | เปิด |
| Bullish Divergence | เปิด | เปิด |
| Bearish Divergence | เปิด | เปิด |
| Bullish Engulfing | เปิด | เปิด |
| Bearish Engulfing | เปิด | เปิด |
| Hammer | เปิด | เปิด |
| Shooting Star | เปิด | เปิด |
| Show EMA | ปิด | ปิด |
| Source | close | close |
| EMA Length 1 | 0.5 | 0.5 |
| EMA Length 2 | 0.5 | 0.5 |
| R base | 200 | 200 |
| q multiplier base | 0.002 | 0.002 |
| R Gate Multiplier base | 1.5 | 1.5 |
| R fast | 20 | 20 |
| q multiplier fast | 0.005 | 0.005 |
| R Gate Multiplier fast | 1.2 | 1.2 |
| Enable Adaptive DC Line Reach (HM) | เปิด | เปิด |
| Show DC Info Label | เปิด | เปิด |
| HM Line Reach Multiplier (×DC) | 13 | 13 |
| Enable RQ-Kernel Lines | เปิด | เปิด |
| Fast Bandwidth (h) | 8 | 8 |
| Slow Bandwidth (h) | 25 | 25 |
| Alpha (Multi-Scale) | 1 | 1 |
| Max Lookback (bars) | 50 | 50 |
| Show Uncertainty Band | เปิด | เปิด |
| RQ Fast Color | rgba(0,229,255,0.9) | rgba(0,229,255,0.9) |
| RQ Slow Color | rgba(255,111,0,0.9) | rgba(255,111,0,0.9) |
| Uncertainty Band Color | rgba(96,125,139,0.12) | rgba(96,125,139,0.12) |
| Enable Entropy Filter | เปิด | เปิด |
| Lookback (bars) | 50 | 50 |
| Discretization Bins | 8 | 8 |
| Show Entropy Label | เปิด | เปิด |
| Structured Threshold (<) | 0.35 | 0.35 |
| Random Threshold (>) | 0.65 | 0.65 |
| Enable VPIN Detection | เปิด | เปิด |
| Smoothing Length (bars) | 20 | 20 |
| Toxic Flow Threshold | 0.35 | 0.35 |
| Balanced Flow Threshold | 0.15 | 0.15 |
| Show VPIN Label | เปิด | เปิด |
| Toxic Color | rgba(255,23,68,1) | rgba(255,23,68,1) |
| Balanced Color | rgba(0,230,118,1) | rgba(0,230,118,1) |
| Enable Monte Carlo Engine | เปิด | เปิด |
| Simulation Method | Geometric Brownian Motion | Geometric Brownian Motion |
| Regime Filter | Trend (SMA) | Trend (SMA) |
| Historical Lookback | 200 | 200 |
| Projection Length | 50 | 50 |
| Simulation Count | 200 | 200 |
| Volatility Multiplier | 1.2 | 1.2 |
| Random Seed | 12345 | 12345 |
| Enable Anchor Mode | เปิด | เปิด |
| Anchor Update Step (Bars) | 100 | 100 |
| Draw Paths in Anchor Mode | ปิด | ปิด |
| Top Path Percentile | 90 | 90 |
| Bottom Path Percentile | 10 | 10 |
| Top Color | rgba(255, 77, 0, 1) | rgba(255, 77, 0, 1) |
| Middle Color | #787B86 | #787B86 |
| Bottom Color | rgba(89, 255, 0, 1) | rgba(89, 255, 0, 1) |
| Path Transparency | 60 | 60 |
| Average Line Color | rgba(255,255,255,1) | rgba(255,255,255,1) |
| Envelope Fill Color | rgba(120,123,134,0.1) | rgba(120,123,134,0.1) |
| Show S/R Levels | เปิด | เปิด |
| Show Dashboard | เปิด | เปิด |
| Position | Top Right | Top Right |
| Size | Small | Small |
| Show Next Candle Prediction | ปิด | ปิด |
| Bullish Color | #089981 | #089981 |
| Bearish Color | #f23645 | #f23645 |
| Enable Confluence Signal (master) | เปิด | เปิด |
| Show LABELS (▲BUY / ▼SELL) | เปิด | เปิด |
| Show ARROWS (plotshape) | เปิด | เปิด |
| Signal on bar close only (less repaint) | เปิด | เปิด |
| MC band zone | Lower/Upper half | Lower/Upper half |
| Require Kalman turn confirm | เปิด | เปิด |
| Require Entropy quality | เปิด | เปิด |
| Entropy must be STRUCTURED | ปิด | ปิด |
| RSI Length (OB/OS) | 14 | 14 |
| Overbought level (≥) | 70 | 70 |
| Oversold level (≤) | 30 | 30 |
| HTF 1 (H1) | 60 | 60 |
| HTF 2 (H4) | 240 | 240 |
| MC band edge tolerance ($) | 0 | 0 |
| Significant-level proximity (xATR14) | 0.5 | 0.5 |
| Min order-flow confirms (1-3) | 1 | 1 |
| Min bars between signals | 5 | 5 |
| Include RQ-Kernel as a level | เปิด | เปิด |
| BUY Label Color | #00E676 | #00E676 |
| SELL Label Color | #FF1744 | #FF1744 |
| Label Size | Normal | Normal |
| Enable Triple MTF Conf Signal | เปิด | เปิด |
| Show Labels (★ CONF BUY / SELL) | เปิด | เปิด |
| Show Arrows (plotshape) | เปิด | เปิด |
| Base TF (M5) | 5 | 5 |
| HTF 1 (H1) | 180 | 60 |
| HTF 2 (H4) | 240 | 240 |
| Momentum Window (WMA length of RSI) | 20 | 20 |
| OS threshold (fast WMA RSI ≤) | 40 | 40 |
| OB threshold (fast WMA RSI ≥) | 60 | 60 |
| Min bars between signals | 3 | 3 |
| BUY Label Color | rgba(0,230,118,1) | rgba(0,230,118,1) |
| SELL Label Color | rgba(255,23,68,1) | rgba(255,23,68,1) |
| Enable ML YZ Bands | ปิด | ปิด |
| YZ Period | 20 | 20 |
| Band Multiplier | 1.5 | 1.5 |
| Middle Band MA | KAMA | KAMA |
| MA Period | 20 | 20 |
| kNN — K Neighbors | 5 | 5 |
| kNN — Lookback | 100 | 100 |
| Adaptive Band Width | เปิด | เปิด |
| Low-Vol Multiplier | 0.8 | 0.8 |
| High-Vol Multiplier | 1.4 | 1.4 |
| VA / POC Lookback | 50 | 50 |
| Value Area % | 70 | 70 |
| Show Value Area | เปิด | เปิด |
| Show POC (VWAP proxy) | เปิด | เปิด |
| Color Bars by YZ State | ปิด | ปิด |
| Show YZ AMT Signals | เปิด | เปิด |
| Show YZ Regime Label | เปิด | เปิด |
| Enable HV-Pivot Levels | ปิด | ปิด |
| Resistance Pivot Length | 144 | 144 |
| Support Pivot Length | 144 | 144 |
| Volume MA Length | 89 | 89 |
| Volume Threshold Multiplier | 1.5 | 1.5 |
| Levels Kept Per Side | 3 | 3 |
| Show CVD Label (CLV×vol) | เปิด | เปิด |
| Resistance Color | rgba(33,150,243,1) | rgba(33,150,243,1) |
| Support Color | rgba(255,193,59,1) | rgba(255,193,59,1) |
| Gate ⑮ Confluence by CVD-level | เปิด | เปิด |
| Gate ⑯ Triple MTF by CVD-level | เปิด | เปิด |
| Level proximity (×ATR14) | 0.5 | 0.5 |
| Min |CVD| to confirm level | 0 | 0 |
| Enable VWAP Stdev Bands | เปิด | ปิด |
| Anchor / reset period | D | D |
| VWAP price source | hl2 | hl2 |
| Stdev above (1) | 2.1278 | 2.1278 |
| below (1) | 2.1278 | 2.1278 |
| Stdev above (2) | 2.887 | 2.887 |
| below (2) | 2.887 | 2.887 |
| Stdev above (3) | 3.414 | 3.414 |
| below (3) | 3.414 | 3.414 |
| Show band group 2 | เปิด | เปิด |
| Show band group 3 | เปิด | เปิด |
| Enable Trend Breakout module | เปิด | เปิด |
| Show Donchian breakout lines | เปิด | เปิด |
| Primary length (bars) | 144 | 144 |
| Show secondary length | เปิด | เปิด |
| Show BO up/down breakout markers | ปิด | ปิด |
| DCH (resistance) color | rgba(216,90,48,1) | rgba(216,90,48,1) |
| DCL (support) color | rgba(29,158,117,1) | rgba(29,158,117,1) |
| Line style | Dashed | Dashed |
| Line extend (bars right) | 6 | 6 |
| Line label size | Tiny | Tiny |
| Show Correction Meter | เปิด | เปิด |
| Meter position | Bottom Left | Bottom Left |
| Meter text size | Small | Small |
| Show dip-buy zone (Fib) | เปิด | เปิด |
| Dip-buy zone color | rgba(29,158,117,0.14) | rgba(29,158,117,0.14) |
| Zone Fib low | 0.5 | 0.5 |
| Zone Fib high | 0.618 | 0.618 |
| chart.bgcolor | rgba(0, 0, 0, 1) | rgba(0, 0, 0, 1) |
| Fast calculation | ปิด | ปิด |
คำแนะนำ
- ใช้ Entropy เป็นสวิตช์เปิด-ปิดการเทรด — นี่คือโมดูลที่ให้ผลตอบแทนต่อความซับซ้อนสูงที่สุดในเครื่องมือนี้ เมื่อค่าบอกว่าตลาดเป็นสุ่ม คำตอบที่ถูกคือไม่เข้าสถานะ ไม่ใช่หาตัวชี้ตัวอื่นมาสนับสนุน
- กำหนดล่วงหน้าว่าจะดูโมดูลไหน แล้วปิดที่เหลือ — เมื่อมีตัวชี้หลายสิบตัว จะมีบางตัวเห็นด้วยกับความคิดของเราเสมอ การเลือกดูหลังจากมีความเห็นแล้วคือการยืนยันตัวเอง ไม่ใช่การวิเคราะห์
- อย่าตั้งเป้าหมายราคาจากเส้น Monte Carlo — มันคือช่วงความน่าจะเป็นภายใต้สมมติฐานของตัวมันเอง เมื่อระบอบเปลี่ยน สมมติฐานก็ผิดทันที ใช้ดูความกว้างของความเป็นไปได้ ไม่ใช่ดูปลายทาง
- ถ้าต้องการข้อมูลสภาพคล่องจริง ต้องใช้ footprint หรือ DOM จากโบรกเกอร์ — heatmap นี้อนุมานจากราคาและปริมาณย้อนหลัง ไม่ใช่คำสั่งที่วางอยู่จริง และแพ็กเกจ TradingView ระดับเริ่มต้นไม่มีข้อมูลประเภทนั้น
