เครื่องมือ · MAP — ระดับราคาและระบอบของตลาด

GEX + EFP Basis Matrix v29

เครื่องมือหลักที่ใช้ตอบคำถามว่า “ตอนนี้ราคาอยู่ตรงไหนของแผนที่ และตลาดกำลังเล่นเกมแบบไหน” ไม่ได้ออกแบบมาเพื่อให้สัญญาณเข้าออก แต่เพื่อกำหนดกรอบว่าโมเดลแบบไหนใช้ได้ในวันนี้

แสดงผลเท่านั้น 266 พารามิเตอร์ 2,465 บรรทัด M3 · H1 ดูซอร์สโค้ด Pine →

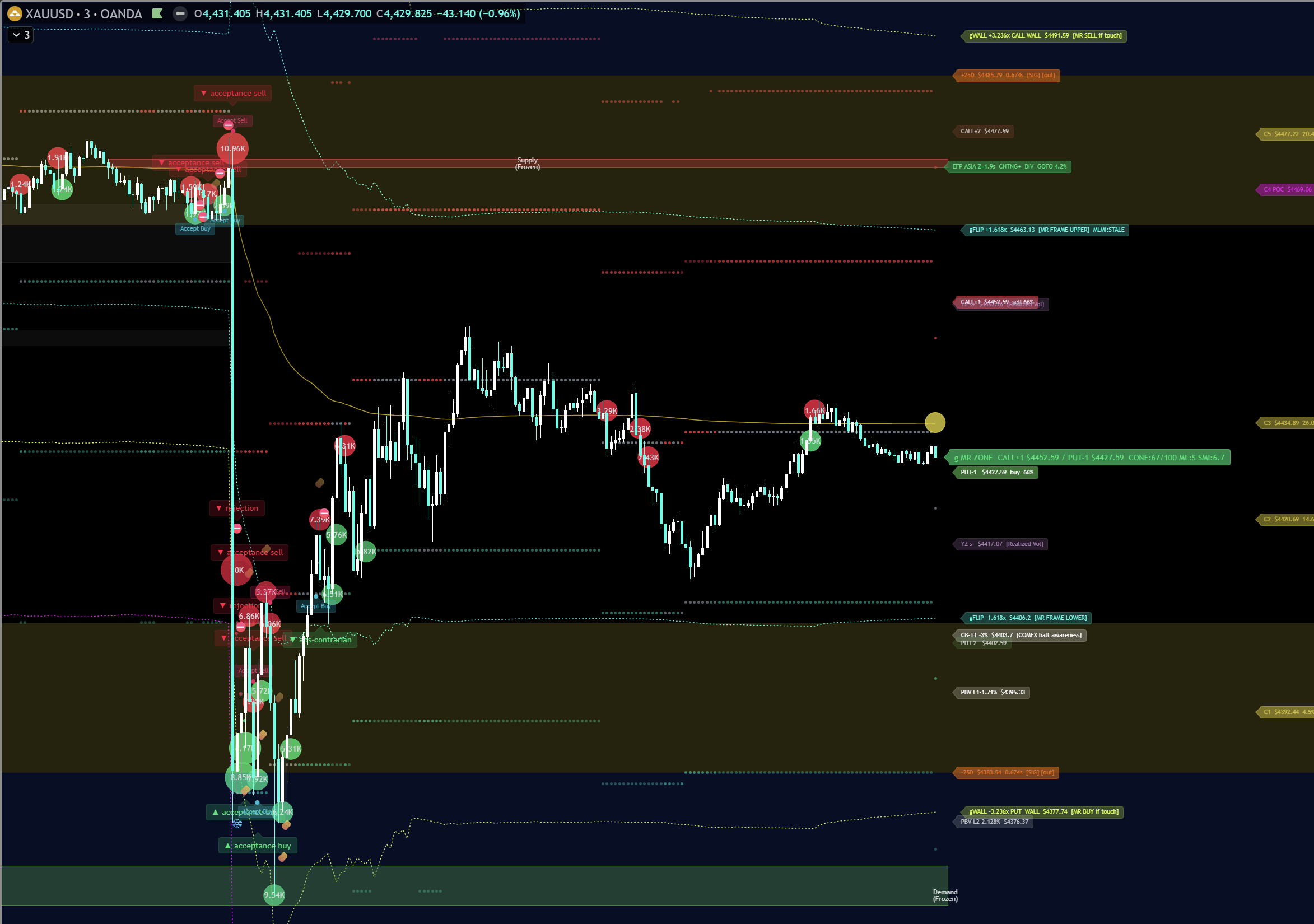

GEX + EFP Basis Matrix บนกราฟ XAUUSD M3
ภาพจากชาร์ตจริงของ OANDA:XAUUSD กรอบเวลา M3 โดยซ่อนเครื่องมืออื่นไว้ชั่วคราวเพื่อให้เห็นเฉพาะตัวนี้

มันวัดอะไร

แกนกลางคือการประมาณความผันผวนด้วย Yang-Zhang แล้วแปลงเป็นชั้นระดับราคาแบบ Fibonacci สามชั้น: g1 (zero-gamma flip), g2 (gamma wall) และ g3 (explosion) ระดับเหล่านี้คือขอบเขตทางสถิติของการเคลื่อนไหว ไม่ใช่แนวรับแนวต้านที่วาดด้วยมือ

ชั้นที่สองคือ EFP basis — ส่วนต่างระหว่างราคา spot กับสัญญา futures COMEX ซึ่งบอกความตึงตัวของตลาดจริง และ SpotEx / Delta zones (25D / 15D / 5D) ที่ประมาณตำแหน่ง strike ที่มีนัยสำคัญ

ชั้นที่สามคือตัวกรองระบอบ: GVZ (ดัชนีความผันผวนทองของ CBOE), DXY, และ §19 Regime Matrix + Γ-proxy ที่รวม 5 สัญญาณ (Variance Ratio, RV−GVZ, YZ fast/slow, Kaufman ER, ตำแหน่งเทียบ g1) เป็นคะแนนเดียวเพื่อบอกว่าตลาดกำลังถูกหน่วงหรือถูกขยาย

วิธีอ่าน

อ่าน Γ ก่อน ACTION เสมอ — ถ้า Γ เป็นบวก ตลาดมีแนวโน้มถูกตรึง breakout น่าสงสัย ควรเก็บกำไรเร็ว ถ้า Γ เป็นลบ การเคลื่อนไหวถูกขยาย เทรนด์ไหลลื่น และ กำแพงกลายเป็นเป้าหมาย ไม่ใช่แนวต้าน

ยิ่งมีหลายตัวชี้มาที่ระดับเดียวกัน โอกาสเกิดปฏิกิริยายิ่งสูง — แต่ การซ้อนทับบอกความแรงของปฏิกิริยา ไม่ได้บอกทิศทาง

บนกรอบเวลา H1 ระบบ Auto-flip ACTION เมื่อ Γ ขัดแย้ง เปิดอยู่ หัวข้อ ACTION จึงเชื่อถือได้ ส่วนบน M3 ปิดไว้ ต้องอ่าน Γ เอง

ข้อจำกัดและกรณีที่ผิด

GEX ของทองในเครื่องมือนี้เป็นค่าประมาณ ไม่ใช่ GEX จริง — GEX จริงต้องคำนวณจาก gamma × Open Interest ของ option chain แต่ TradingView ไม่มีข้อมูล Open Interest ของสัญญา GC ให้ใช้ ค่าที่เห็นจึงมาจาก Yang-Zhang volatility + EFP basis เป็นตัวแทน ใช้เป็น “ตา” ได้ แต่ไม่ใช่ “edge”

คะแนนความมั่นใจไม่ใช่ความน่าจะเป็นของทิศทาง — Hurst และตัวชี้ระบอบไม่รู้จักทิศทาง คะแนนสูงแปลว่า “เงื่อนไขสอดคล้องกัน” ไม่ได้แปลว่า “ราคาจะขึ้น”

ห้ามสวนเทรนด์ด้วยเครื่องมือนี้ — ชุดเครื่องมือทั้งหมดเอียงไปทางกลับสู่ค่ากลาง เคยพิมพ์สัญญาณสวนที่ความมั่นใจ 90–95 แล้วราคาวิ่งสวนต่อไปอีกกว่า 100 ดอลลาร์ ระดับที่เห็นคือตำแหน่ง ไม่ใช่คำสั่ง

ฟีด COMEX:GC1! บนบัญชีนี้เป็นข้อมูลหน่วงเวลา — ค่า basis ที่อ่านได้แบบเรียลไทม์จึงช้ากว่าราคา spot

ค่าที่ตั้งไว้จริง

ตารางนี้ถูกสร้างจากค่าที่ดึงออกมาจากชาร์ตที่ใช้งานอยู่จริง ไม่ได้พิมพ์ด้วยมือ จึงตรงกับสิ่งที่ทำงานอยู่ ณ เวลาที่สร้างหน้านี้เสมอ

ค่าที่ตั้งต่างกันระหว่าง M3 กับ H1 15 จุด

พารามิเตอร์M3H1
YZ Lookback (bars) 600 233
Implied Vol Multiplier 5 3
Zero Gamma Flip 1.618 0.618
Gamma Wall 3.236 1.1278
Explosion 5.272 1.887
Rich Strike Labels ปิด เปิด
Cluster Line Extension (bars) 75 50
Small Percentile 83 75
AMT Symbol Size (Rejection/Absorption/Iceberg) Normal Large
LTF Resolution (intrabar) 1 30
Auto-flip ACTION on Γ conflict [v29] ปิด เปิด
Show ADX/DI rows [v29] ปิด เปิด
Fib swing lookback (bars) 500 60
Deep-Fib low 0.786 0.705
Deep-Fib high 0.95 0.886
ดูค่าทั้งหมด 266 รายการ
พารามิเตอร์M3H1
EFP Basis Mode SESSION SESSION
Futures Ticker (COMEX) COMEX:GC1! COMEX:GC1!
GVZ Vol Index (CBOE) CBOE:GVZ CBOE:GVZ
Basis SMA Length 200 200
COMEX Strike Block ($) 25 25
SD Level phi (sigma) 1.618 1.618
PBV L1 % (1.71) 1.71 1.71
PBV L2 % (2.1278) 2.1278 2.1278
PBV L3 % (3.618) 3.618 3.618
GOFO Rate % (1-month) 4.2 4.2
YZ Lookback (bars) 600 233
Implied Vol Multiplier 5 3
sigma Level Mode FIBONACCI FIBONACCI
Zero Gamma Flip 1.618 0.618
Gamma Wall 3.236 1.1278
Explosion 5.272 1.887
Sigma Floor (xATR14) 2 2
Enable GVZ Filter เปิด เปิด
GVZ Normal Threshold 24 24
GVZ Elevated Threshold 32 32
GVZ Extreme Threshold 42 42
Enable DXY Filter เปิด เปิด
DXY ROC Period (bars) 5 5
DXY ROC Threshold (%) 0.3 0.3
Show CB Tier Lines เปิด เปิด
Enable CB Signal Gate (blocks MR inside ±3%) เปิด เปิด
CB Tier 1 (±3%) Color rgba(255, 255, 255, 1) rgba(255, 255, 255, 1)
CB Tier 2 (±6%) Color rgba(255, 255, 255, 1) rgba(255, 255, 255, 1)
CB Tier 3 (±9%) Color rgba(255, 255, 255, 1) rgba(255, 255, 255, 1)
Zone Tolerance ($) 3 3
Min Candle Body Ratio 0.4 0.4
Event Window (bars) 5 5
Bubble Proximity Mult 1.5 1.5
Dedup Window (bars) 5 5
Signal Priority Gate C/D>A/B>E/F เปิด เปิด
Regime Hysteresis (bars) 2 2
N Strikes to show 2 2
No MR 00-02:59 UTC เปิด เปิด
Show Regime Heatmap เปิด เปิด
Show gFlip g1 Labels ปิด ปิด
Show SpotEx ATM ปิด ปิด
Show VWAP Label เปิด เปิด
Show Daily VWAP (secondary) ปิด ปิด
Rich Strike Labels ปิด เปิด
Show Gamma Wall Labels (2x) ปิด ปิด
Show Explosion Labels (3x) ปิด ปิด
Show SD/PBV Levels เปิด เปิด
Show PHI System (1.618sigma) ปิด ปิด
Show DELTA System (25D/15D/5D) เปิด เปิด
Signal Source (cond_C/D) DELTA DELTA
Show SpotEx Strikes เปิด เปิด
Show Expected Move +/-1sigma เปิด เปิด
Show Expected Move +/-2sigma เปิด เปิด
Show Risk Reversal Label เปิด เปิด
Show VPIN Proxy Label เปิด เปิด
gFlip color rgba(31, 255, 232, 1) rgba(31, 255, 232, 1)
Wall+2x rgba(216, 255, 59, 1) rgba(216, 255, 59, 1)
Wall-2x rgba(216, 255, 59, 1) rgba(216, 255, 59, 1)
Explosion 3x rgba(255, 0, 255, 1) rgba(255, 0, 255, 1)
SD Level rgba(255, 255, 255, 1) rgba(255, 255, 255, 1)
PBV Level rgba(255, 255, 255, 1) rgba(255, 255, 255, 1)
BUY Signal #00E676 #00E676
SELL Signal #FF1744 #FF1744
Call Line rgba(247, 82, 95, 0.5) rgba(247, 82, 95, 0.5)
Put Line rgba(102, 187, 106, 0.5) rgba(102, 187, 106, 0.5)
Blocked Line rgba(255, 167, 38, 0.65) rgba(255, 167, 38, 0.65)
Call Label BG (Normal) rgba(247, 82, 95, 0.5) rgba(247, 82, 95, 0.5)
Call Label BG (Med) rgba(178, 40, 51, 0.8) rgba(178, 40, 51, 0.8)
Call Label BG (Strong) rgba(128, 25, 34, 0.9) rgba(128, 25, 34, 0.9)
Put Label BG (Normal) rgba(102, 187, 106, 0.5) rgba(102, 187, 106, 0.5)
Put Label BG (Med) rgba(56, 142, 60, 0.8) rgba(56, 142, 60, 0.8)
Put Label BG (Strong) rgba(27, 94, 32, 0.9) rgba(27, 94, 32, 0.9)
Blocked Label BG rgba(230, 81, 0, 0.6) rgba(230, 81, 0, 0.6)
Call Text (Normal) rgba(255, 255, 255, 1) rgba(255, 255, 255, 1)
Call Text (Med) rgba(255, 255, 255, 1) rgba(255, 255, 255, 1)
Call Text (Strong) rgba(255, 255, 255, 1) rgba(255, 255, 255, 1)
Put Text (Normal) rgba(255, 255, 255, 1) rgba(255, 255, 255, 1)
Put Text (Med) rgba(255, 255, 255, 1) rgba(255, 255, 255, 1)
Put Text (Strong) rgba(255, 255, 255, 1) rgba(255, 255, 255, 1)
Blocked Text rgba(255, 255, 255, 1) rgba(255, 255, 255, 1)
PHI Line Color rgba(255,152,0,0.75) rgba(255,152,0,0.75)
PHI Line Width (1-4) 1 1
PHI Line Style Dotted Dotted
PHI Label Transparency 75 75
DELTA DTE (days) 1 1
15D Put Skew x 1.29 1.29
15D Call Skew x 1.27 1.27
5D Put Skew x 1.21 1.21
5D Call Skew x 1.23 1.23
25D Color rgba(255,111,0,0.95) rgba(255,111,0,0.95)
25D Width (1-4) 1 1
25D Style Dotted Dotted
25D Label Transparency 50 50
15D Color rgba(255,167,38,0.65) rgba(255,167,38,0.65)
15D Width (1-4) 1 1
15D Style Dotted Dotted
15D Label Transparency 65 65
5D Color rgba(144,164,174,0.45) rgba(144,164,174,0.45)
5D Width (1-4) 1 1
5D Style Dotted Dotted
5D Label Transparency 75 75
SD/Delta Label Size Tiny Tiny
35D Color rgba(255,87,34,0.5) rgba(255,87,34,0.5)
45D Color rgba(230,74,25,0.5) rgba(230,74,25,0.5)
Show Delta Zone Fills เปิด เปิด
Fill 5D-15D rgba(76, 175, 80, 0.15) rgba(76, 175, 80, 0.15)
Fill 15D-25D rgba(41, 98, 255, 0.15) rgba(41, 98, 255, 0.15)
Fill 25D-35D rgba(255, 235, 59, 0.15) rgba(255, 235, 59, 0.15)
Fill 35D-45D rgba(0, 0, 0, 0.15) rgba(0, 0, 0, 0.15)
Show gFlip g1 Band (+/-1.618sigma) เปิด เปิด
g1 Band Color rgba(31, 255, 232, 1) rgba(31, 255, 232, 1)
g1 Width (1-4) 1 1
Show gWall g2 Band (+/-3.414sigma) เปิด เปิด
g2+ Call Wall Color rgba(216, 255, 59, 1) rgba(216, 255, 59, 1)
g2- Put Wall Color rgba(216, 255, 59, 1) rgba(216, 255, 59, 1)
g2 Width (1-4) 1 1
Show gExp g3 Band (+/-5sigma) เปิด เปิด
g3 Explosion Color rgba(255, 0, 255, 1) rgba(255, 0, 255, 1)
g3 Width (1-4) 1 1
g1 Band Style Dotted Dotted
g2 Band Style Dotted Dotted
g3 Band Style Dotted Dotted
Show K-Means Cluster VP เปิด เปิด
Lookback Period (bars) 377 377
Number of Clusters 5 5
K-Means Iterations 50 50
Cluster Line Color rgba(255, 235, 59, 0.7) rgba(255, 235, 59, 0.7)
Show Cluster Labels เปิด เปิด
Highlight Price at Cluster Level เปิด เปิด
Cluster Line Extension (bars) 75 50
Cluster Line Width (1-4) 1 1
POC Line Style Dotted Dotted
Cluster Line Style Dotted Dotted
Cluster Label Size Tiny Tiny
CVP Dot Size (near cluster) small small
POC Star Color rgba(255, 0, 255, 1) rgba(255, 0, 255, 1)
Show ALMA Lines เปิด เปิด
L1 Length (Fast) 59 59
L1 Offset (0-1) 0.85 0.85
L1 Sigma 6 6
L1 Color (Fast) rgba(0,255,136,1) rgba(0,255,136,1)
L1 Width (1-4) 1 1
L2 Length (Medium) 125 125
L2 Offset 0.85 0.85
L2 Sigma 6 6
L2 Color (Med) rgba(255,204,0,1) rgba(255,204,0,1)
L2 Width (1-4) 1 1
L3 Length (Slow) 215 215
L3 Offset 0.85 0.85
L3 Sigma 6 6
L3 Color (Slow) rgba(255,0,68,1) rgba(255,0,68,1)
L3 Width (1-4) 1 1
Short Window 20 20
Medium Window 50 50
Long Window 100 100
Small Percentile 83 75
Medium Percentile 93 93
Big Percentile 97 97
Show Small Clusters เปิด เปิด
Show Medium Clusters เปิด เปิด
Show Big Clusters เปิด เปิด
Bubble BUY Color rgba(0,230,118,0.8) rgba(0,230,118,0.8)
Bubble SELL Color rgba(255,23,68,0.8) rgba(255,23,68,0.8)
Bubble MIXED Color rgba(255,215,0,0.7) rgba(255,215,0,0.7)
Show Numbers in Bubbles เปิด เปิด
Bubble Text Volume Volume
Show AMT Patterns เปิด เปิด
Show Rejection (reversal wick) เปิด เปิด
Show Absorption (continuation) เปิด เปิด
Show Contrarian (exhaustion warn) เปิด เปิด
Show Acceptance (balanced) เปิด เปิด
Show Iceberg at GEX zones (signal) เปิด เปิด
Show Iceberg warning at SpotEx เปิด เปิด
Rejection Wick % (of range) 0.4 0.4
Absorption Dominance Ratio 1.5 1.5
Iceberg Mass Threshold (xSMA50) 1.8 1.8
Rejection Color rgba(156,39,176,1) rgba(156,39,176,1)
Absorption Color rgba(0,188,212,1) rgba(0,188,212,1)
Iceberg Color rgba(255,215,0,1) rgba(255,215,0,1)
AMT Symbol Size (Rejection/Absorption/Iceberg) Normal Large
Enable Bubble Context (LTF position → pattern) เปิด เปิด
Show Context Labels (abs-continue / acceptance / rejection …) เปิด เปิด
Show Position Dot (bubble at LTF cluster, colored by side) เปิด เปิด
LTF Resolution (intrabar) 1 30
Position Bins (vertical resolution) 20 20
Top Zone Threshold (frac of range) 0.66 0.66
Bottom Zone Threshold (frac of range) 0.34 0.34
Min Bubble Size to Classify Medium+ Medium+
Bullish-Outcome Label Color rgba(0,230,118,1) rgba(0,230,118,1)
Bearish-Outcome Label Color rgba(255,23,68,1) rgba(255,23,68,1)
Context Label Size Small Small
Prefix side arrow on label (▲buy / ▼sell) เปิด เปิด
MLMI Neighbors (k) 987 987
MLMI Momentum Window 10 10
MLMI Max Stored Trades (perf cap) 2500 2500
Enable MLMI/SMI Signal Gate เปิด เปิด
MLMI Decay LON+NY (bars) 8 8
MLMI Decay ASIA (bars) 5 5
MLMI Expire (bars) 21 21
SMI %K Length 10 10
SMI %D Length 3 3
SMI EMA Length 3 3
SMI Overbought Level 40 40
SMI Oversold Level -40 -40
Show EM +/-3sigma Band (99.7%) เปิด เปิด
EM +/-3sigma Color rgba(255,23,68,0.7) rgba(255,23,68,0.7)
Show EM Probability Labels เปิด เปิด
Show YZ Realized Vol Band เปิด เปิด
Show Q-Block Grid Lines เปิด เปิด
Show EFP Basis Labels on Chart เปิด เปิด
W0 ATM Color rgba(96,125,139,0.7) rgba(96,125,139,0.7)
W+1/+2 Call Color rgba(255,23,68,0.6) rgba(255,23,68,0.6)
W-1/-2 Put Color rgba(0,230,118,0.6) rgba(0,230,118,0.6)
Q-Block Line Width 1 1
Enable Squeeze Labels ปิด ปิด
YZ Fast Window (bars) 20 20
YZ Slow Window (bars) 100 100
Compression Ratio Threshold 0.7 0.7
Min Compression Bars (Filter ①) 3 3
Bull Label Text SqUp SqUp
Bear Label Text SqDn SqDn
SqUp Color rgba(0,230,118,1) rgba(0,230,118,1)
SqDn Color rgba(255,23,68,1) rgba(255,23,68,1)
Label Background Transparency (0-100) 20 20
Label Size Small Small
Text Size Small Small
Label Offset (x ATR14) 0.5 0.5
Show Supply/Demand Frozen Zones เปิด เปิด
Zone Sensitivity (×σ basis) 2 2
Volume Spike Factor 1.5 1.5
Warmup (bars) 10 10
Enable Expansion / MR-into-Trend module ปิด ปิด
Show Expansion labels เปิด เปิด
Expansion avg window (bars) 5 5
Expansion multiple (× avg range) 2 2
Show MR-into-Trend labels เปิด เปิด
Retrace lookback (bars) 20 20
Bullish label color rgba(0,230,118,1) rgba(0,230,118,1)
Bearish label color rgba(255,23,68,1) rgba(255,23,68,1)
Expansion label color rgba(255,215,0,1) rgba(255,215,0,1)
Label size Small Small
Enable Regime Matrix + Γ-proxy เปิด เปิด
Direction baseline EMA (bars) 200 200
Baseline slope lookback (bars) 20 20
Variance Ratio k 6 6
Variance Ratio window 100 100
Trend-efficiency (ER) window 20 20
Realized-vol window (vs GVZ) 20 20
Table position Top Left Top Left
Table text size Small Small
Table background rgba(0, 0, 0, 1) rgba(0, 0, 0, 1)
Auto-flip ACTION on Γ conflict [v29] ปิด เปิด
Γ-conflict threshold |score| 2 2
Flip hysteresis (bars) 3 3
Show ADX/DI rows [v29] ปิด เปิด
ADX/DI length 14 14
ADX smoothing 14 14
ADX strong level 25 25
Show deep-Fib premium/discount [v29] ปิด ปิด
Fib swing lookback (bars) 500 60
Deep-Fib low 0.786 0.705
Deep-Fib high 0.95 0.886
Discount zone (buy) color rgba(38,166,154,1) rgba(38,166,154,1)
Premium zone (sell) color rgba(239,83,80,1) rgba(239,83,80,1)
chart.fgcolor #DBDBDB #DBDBDB
Fast calculation ปิด ปิด

คำแนะนำ

  1. ใช้เป็นแผนที่ตำแหน่ง ไม่ใช่ตัวให้สัญญาณ — วางคำสั่ง limit ที่ระดับ แทนการไล่ราคาเมื่อเห็นสัญญาณ วิธีนี้ทนต่อต้นทุนสเปรดได้ดีกว่ามาก
  2. อ่าน H1 ก่อนเสมอ เพราะระบบ auto-flip เปิดอยู่เฉพาะกรอบนั้น ใช้ M3 เพื่อจับจังหวะเข้าเท่านั้น ไม่ใช่เพื่อตัดสินทิศทาง
  3. อย่าใช้ค่า basis ตัดสินใจในจังหวะเร็ว เพราะฟีด GC1! หน่วงเวลา — ใช้มันดูความตึงตัวเชิงโครงสร้างระหว่างวันแทน
  4. สิ่งที่อัปเกรดได้จริงโดยไม่ต้องมี Open Interest: TradingView มี delta / gamma / implied volatility ของ option chain GC จริง (แม้ไม่มี OI) จึงสามารถแก้สมการหาราคา strike ที่ delta เท่ากับ 0.25 / 0.15 / 0.05 จริง มาแทนตัวคูณ skew ที่ตั้งค่าตายตัวไว้ในเครื่องมือได้ นี่คือการเปลี่ยนค่าประมาณให้เป็นค่าจริงโดยไม่ต้องเปลี่ยนแหล่งข้อมูล
  5. ถ้าต้องการ GEX จริง ต้องหาแหล่ง Open Interest ของสัญญา GC จากที่อื่น (CME DataMine หรือฟีดของโบรกเกอร์) — ไม่มีทางได้จาก TradingView ไม่ว่าจะอัปเกรดแพ็กเกจไปเท่าใด
